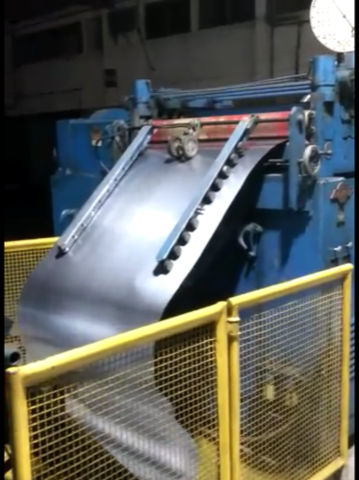

Littell LM-2E automatic coil cutting line – Ref. G053

Consisting of the following:

  • 13.6 Metric Ton Capacity Uncoiler, Coil Car and Downender
  • Visual Inspection Station including Thickness Gauge and Pinhole Detector
  • 16 Roll, Small Diameter/Close Center Straightener
  • Under-Driven Cut-Off Machine with Electronic Feed
  • Four Station Heavy-Duty Stackers (two prime / two reject) with Powered Discharge Conveyor
  • Manual Gauge Table
  • Material: Tinplate, TFS, Blackplate and Aluminum in tempers normally associated with standard can making materials
  • Plate thickness range: 0.13 to 0.50 mm
  • Strip width range: 610 to 1016 mm
  • Strip length range: 457 to 1200 mm
  • Maximum coil weight: 13.6 Metric tons
  • Coil ID: 420 mm
  • Reel Arbor Expansion: 380-445 mm
  • Maximum Coil O.D: 1830 mm
  • Minimum Coil O.D: 914 mm
  • Standard feeding range: 457-1200 mm
  • Sheet length tolerance: +/- 0.15 mm
  • Line speed range: 50-175 sheets per minute / 137 meters per minute
  • Direction of feeding: Right to left
  • Bundle size: 2268 Kilo Maximum Weight
  • Bundle Height: 457 mm stack height over 89 mm pallet
